Masks

Check the barring masks available in the tenant and the network services each one affects. It is a read-only screen: it changes nothing.

Open Masks in Admin →

  1. Open Masks. The Masks list table is sorted by Code.
  2. Filter by Code or Name by typing part of the text, or by Operation type and Subscription type by ticking one or more values.
  3. Expand a row with › to read the mask’s Description.

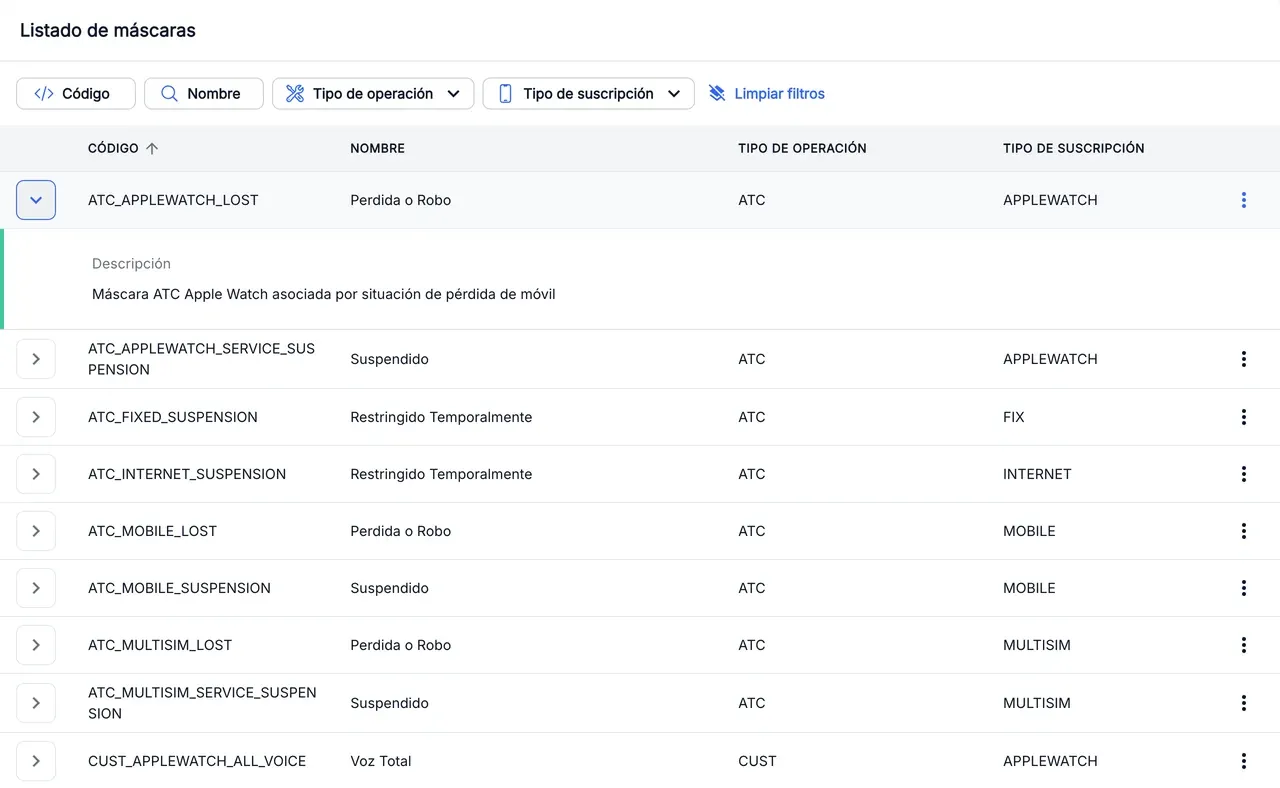

Masks list with one row expanded

See a mask’s detail

  1. In the mask’s row, open the ⋮ menu and press View detail.
  2. General data shows the code, name, operation type, subscription type and description.
  3. In the Services tab, the Affected network services table lists the mask’s services. You can filter them by Code and Description.

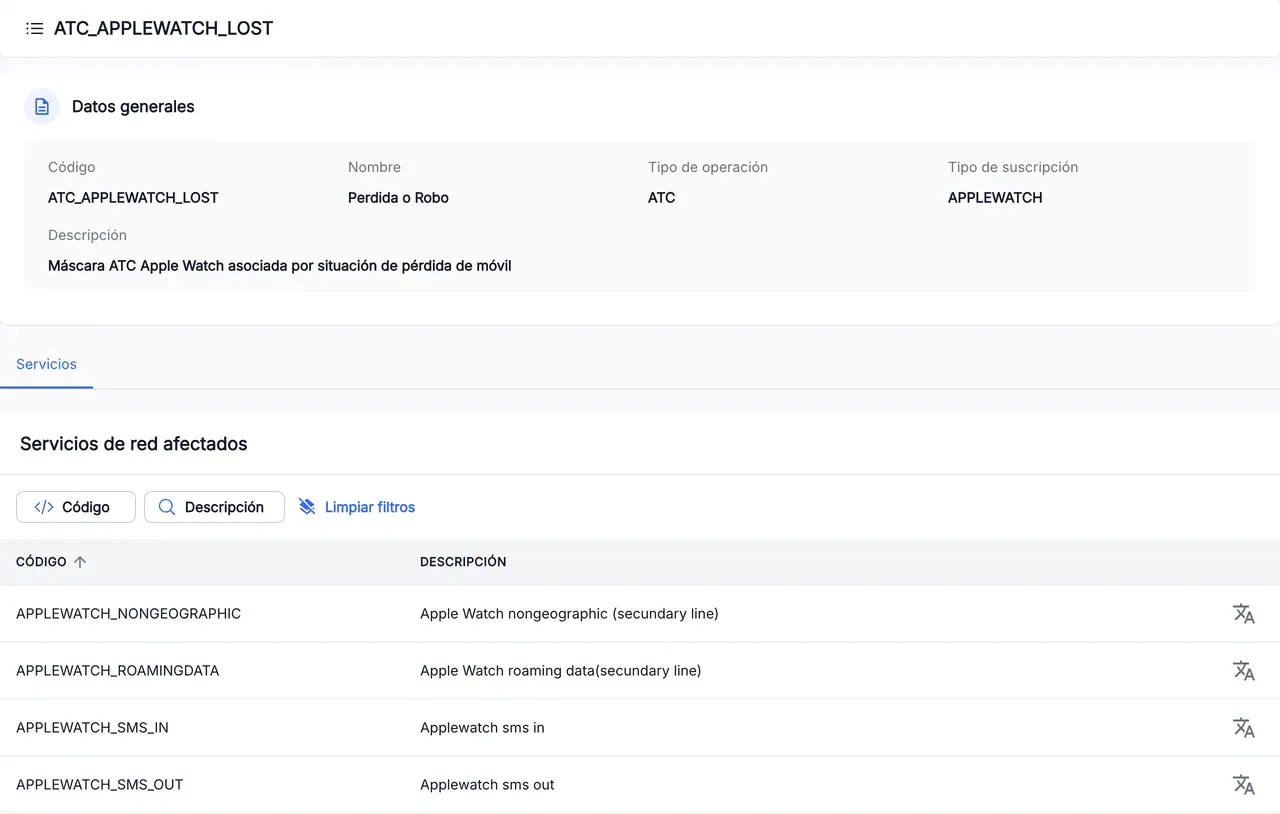

A mask's detail with its affected network services

The screenshots show the Admin interface in Spanish.

When something is not as expected

You seeWhat it means and what to do
The list is emptyThe selected tenant has no masks. Check the tenant in the Admin header.
”Mask not found”The mask in the link does not exist in the selected tenant. Go back to the list and find it there.
”This mask has no associated services”The mask does not affect any network service.

Reference

List columns

ColumnWhat it is
CodeThe mask’s identifier, for example CUST_MOBILE_OUTGOING_SMS.
NameThe mask’s descriptive name.
Operation typeThe mask’s area: CUST, DEBT, ATC or RISK.
Subscription typeThe product it applies to, for example MOBILE.

Affected network services columns: the service’s code and description.
